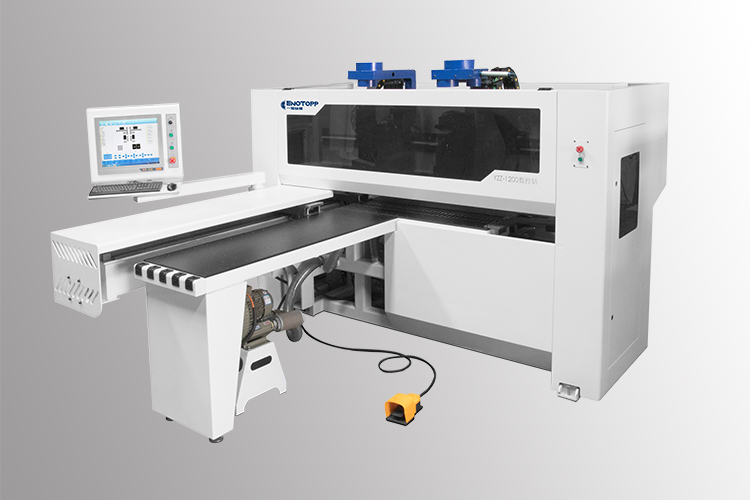

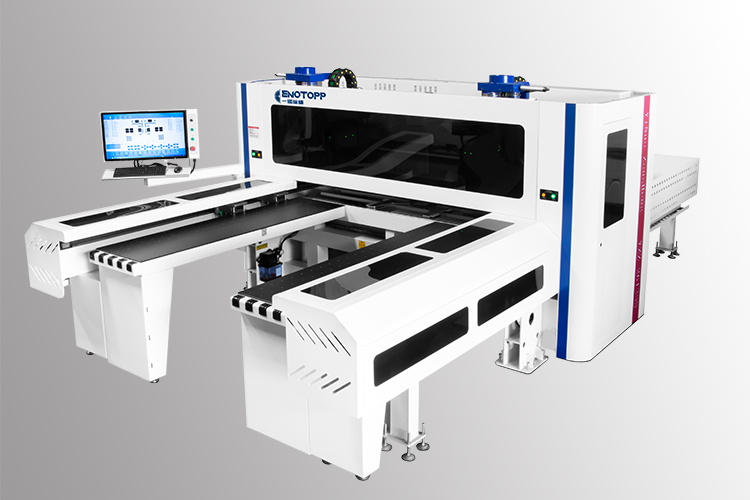

ENOTOPP CNC drilling machine with double tool magazine
Brand: ENOTOPP
Model: YZZ-612S
Payment Terms: T/T/Visa/Mastercard
Category: drilling center, boring machine
After-sale Service: Free professional machine operation training.
Supply Ability: 30 Sets per Month
Drilling center video
Boring machine video
Description

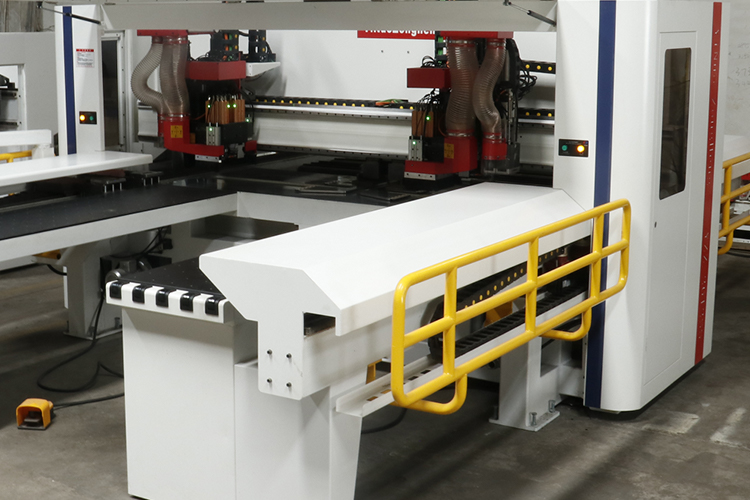

ENOTOPP double drills six-sided drilling machine ensure the speed and accuracy of workpiece handling and processing. Each hole can be drilled with extremely high accuracy. The same goes for milling and grooving operations. Despite the extremely fast movement speed, the workpiece surface is perfectly protected. Two workpieces can be processed at the same time, which is highly efficient, and the various connection methods of the machine tool can bring high flexibility.
Features
It is used in the processing of horizontal and vertical drilling and slotting of various wood-based panels, solid wood panels, and semi-solid wood panels. The operation is simple, the drilling processing speed is fast, and the small spindle is used for slotting and milling. It is suitable for processing various cabinet and panel furniture.
Parameters
Brand |
ENOTOPP |
|
|---|---|---|
|

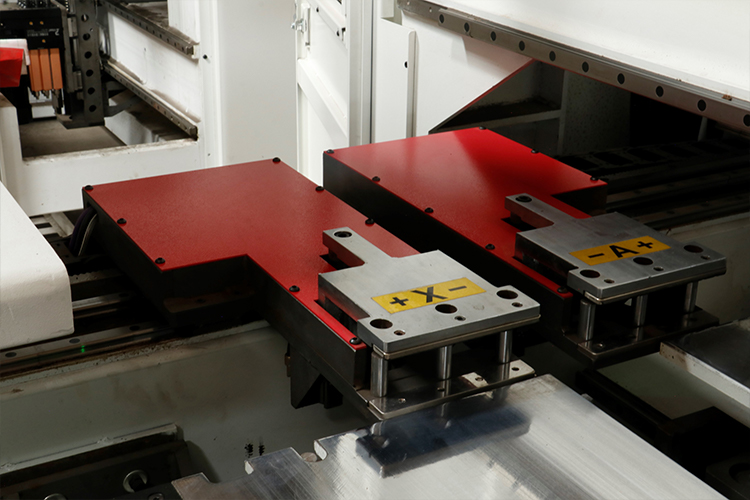

X Axis A Axis (Gripper) |
130m/min |
|
|
Y Axis B Axis (Tool magazine left and right) |
95m/min |
|
|
Z Axis C Axis (Tool magazine up and down) |
35m/min |
|
|

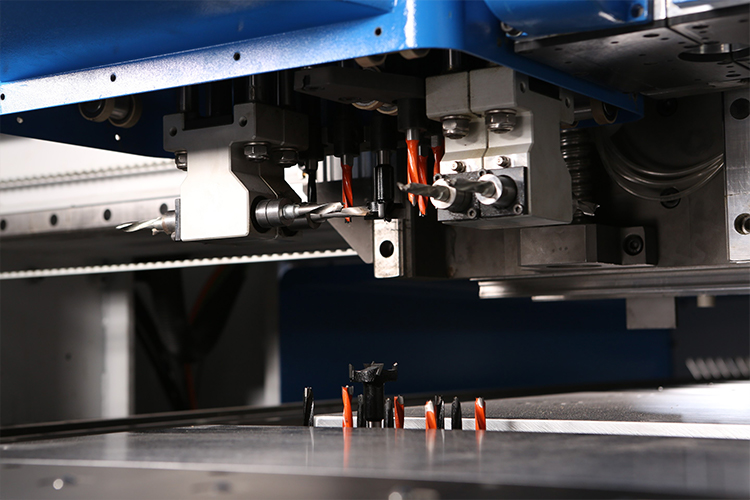

Upper Tool magazine |
11 (vertical drilling) + 8 (horizontal drilling)*2 sets |
|
|
Down Tool magazine |
9 (vertical drilling) |
|
|
Drill set motor power |
2.2kw（upper drill）+2.2KW（down drill） 4000rpm |
|
|
Routing and Milling Spindle |
||
|
Spindle type |
Er32 |
|
|
Diameter of tool |
φ10 |
|
|
Motor power |
3.7kw（upper spindle）+3.7KW（down spindle） |
|
|
Speed |
18000rpm |
|
|
Processing size range: |
||
|
Minimum width of sheet |
35mm |
|
|
Maximum width of sheet |
1200mm |
|
|
Minimum length of sheet |
150mm |
|
|
Maximum thickness of sheet |
2800mm |
|
|
Others |
||
|
table height |
920mm |
|
|
Total power |
18kw |
|
|
Working voltage |
380V/50HZ |
|
|
Working pressure |
0.6-0.8Mpa |
|
|
Machine net weight |
4500kg |
|
|
Machine size |
4950*2880*2050mm |
Applications
The CNC drilling machine is also called as CNC boring machine, it is widely used in panel wood processing. Its main function is drilling, milling, grooving etc. the CNC drilling machine can process 6-sided drilling in the same time, no need to turn the panels manually. The final products of this machine are wooden furniture like doors, drawers, cabinets, table etc.
Samples

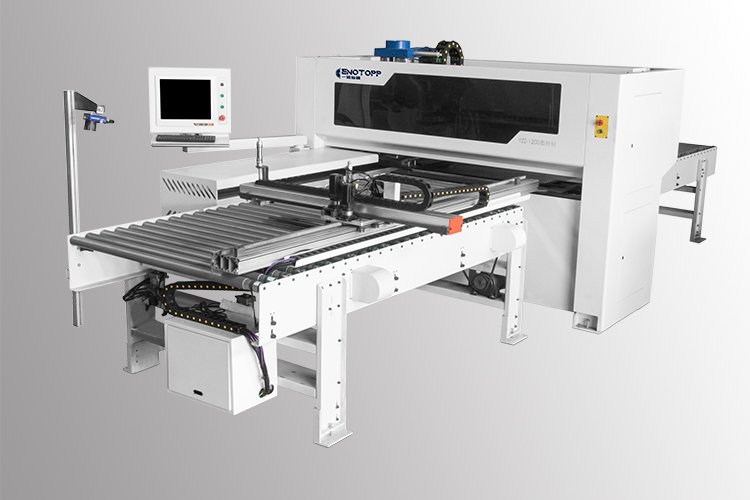

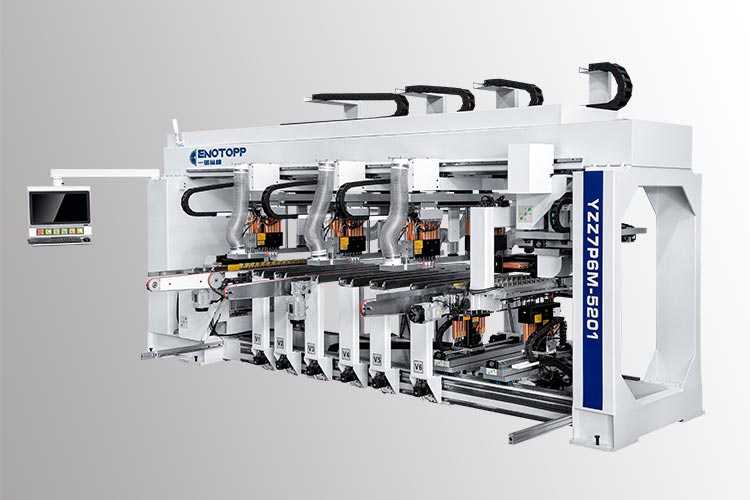

Related Products
